Slaughter Cold Room

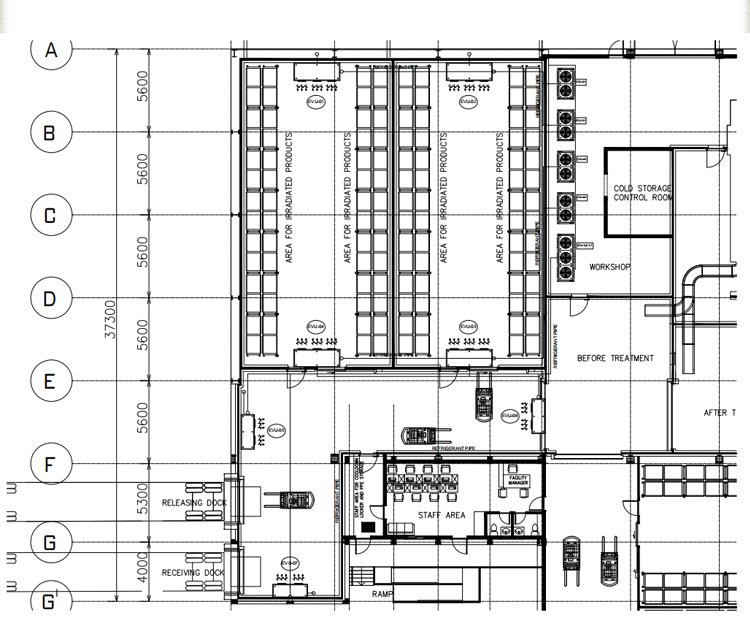

The cold storage area is about 600㎡, including two -20℃ low-temperature cold storage and one 0℃ low-temperature hall, used for storing frozen meat.

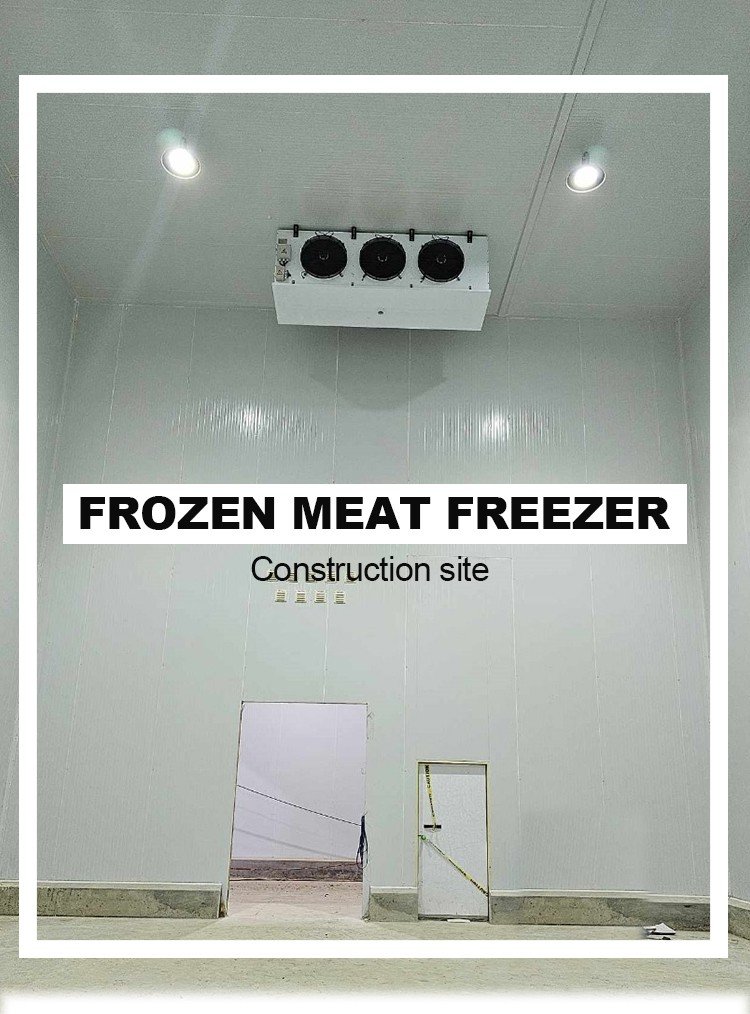

The two low-temperature cold storages use 4 SCBL134YA air-cooled condensing units + 4 ceiling-mounted air coolers produced by ARKREF, with electric frost and 8-variable 12mm large pitch. The low-temperature hall adopts an SCBH135YA air-cooled condensing unit produced by ARKREF + 3 ceiling-mounted air coolers, electric frost, and a 6mm large area. At present, the project has been installed and is running in good condition.
Room | Room Temp. | Room height | Area | Room load | Unit model | Number of units | Working condition (℃)
| Refrigeration capacity of a single unit | Compressor model | Condenser | Air cooler model | Number of air coolers |
-20℃ | 9.5m | 216㎡ | 59.1kw | SCBL134YA | 2 | 28.3kw | 6GE-34Y | SFNVB1114 | SEJ3000E | 2 | ||
Room#2 | -20℃ | 9.5m | 216㎡ | 59.1kw | SCBL134YA | 2 | -27℃/50℃ | 28.3kw | 6GE-34Y | SFNVB1114 | SEJ3000E | 2 |
Hallway | 0℃ | 6m | 175㎡ | 52.6kw | SCBH135YA | 1 | -10℃/50℃ | 55.4kw | 6HE-35Y | SFNVB1204 | SEL1800E | 3 |
Refrigerant:R507A Electrical system:3*440*60HZ
