Evaporator Air Cooler
Model: Evaporative air cooer
Voltage/Frequency: 220/50--380/50
Max Air Flow: 20000M³/H
Working Current(A): 4.8/2.7
Power Consumption(Kw): 1.1
Physical Size(Mm)： 1120*1120*1030
Air Outlet Size(L*H): 670*670
Net Weight(Kg): 65
Product Parameter
| Voltage/Frequency(V/Hz) | 220v 50hz / 380v 50hz |
| Max air flow(m³/h) | 20000 |
| Working current(A) | 4.8/2.7 |
| Power consumption(kw) | 1.1 |
| Physical Size(mm) | 1120*1120*1030 |
| Air outlet size(L*H) | 670*670 |
| Net weight(kg) | 65 |
| Water tank capacity(L) | 25/35 |
| Water consumption(L/H) | 65 |
| Applicable area(㎡) | 100-150 |
Related Product
 | ||

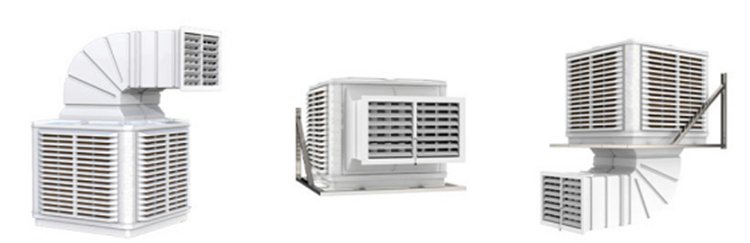

| Blow from above | Blow from the side | Blow from below |
Product Advantage

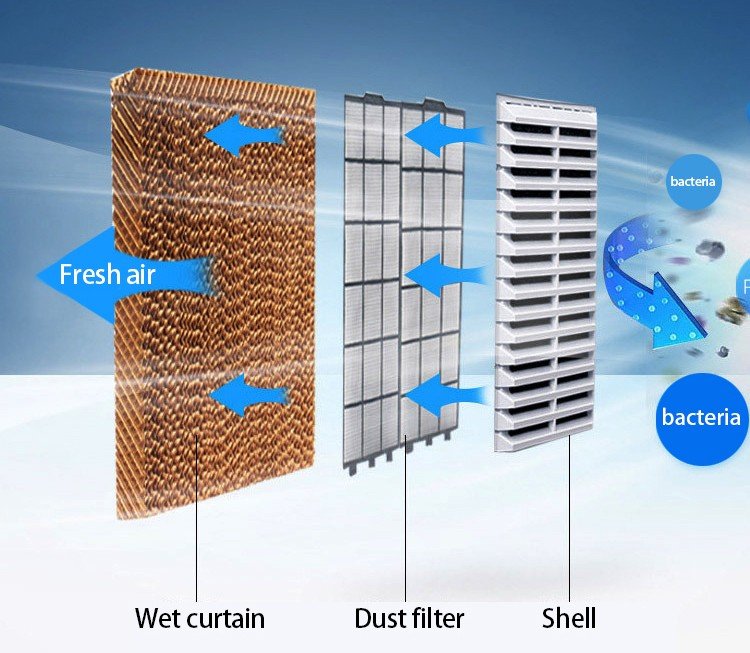

Thickened Wet Curtain
Prevent impurities in the air from being sucked into the machine filter dust
 |  |  |
Dedicated motor The motor adopts B-class insulation and protection grade IP54, which has the advantages of high temperature resistance, high humidity resistance, high efficiency, low noise and stable performance. | Controller Adopt DSP control principle, equipped with "cooling". "swing wind", high.medium and low air volume adjustment functions. When there is water shortage, it can automatically stop refrigeration and alarm. | Fan blade The fan blades are made of high quality plastic injection molding. Based on the professional engineering design of fluid mechanics and aerodynamics, the blade has a smooth arc, forming a reasonable flow channel, thus ensuring low noise and large air volume. |
 |  |  |
Water tank Made of new environmentally friendly PP material injection molding. Anti-aging, increase lifespan, the water tank capacity reaches 120 liters of water, and the use time is as long as 8-13 hours. | Wet curtain Thicken the wet curtain to prevent dust and other impurities in the air from being sucked into the machine. It has the advantages of high water absorption, high water resistance, mildew resistance and long service life. | Air outlet When not in use, the upper and lower air bars can be adjusted to a closed state to prevent mosquitoes and dust from entering the machine and keep the machine hygienic. |

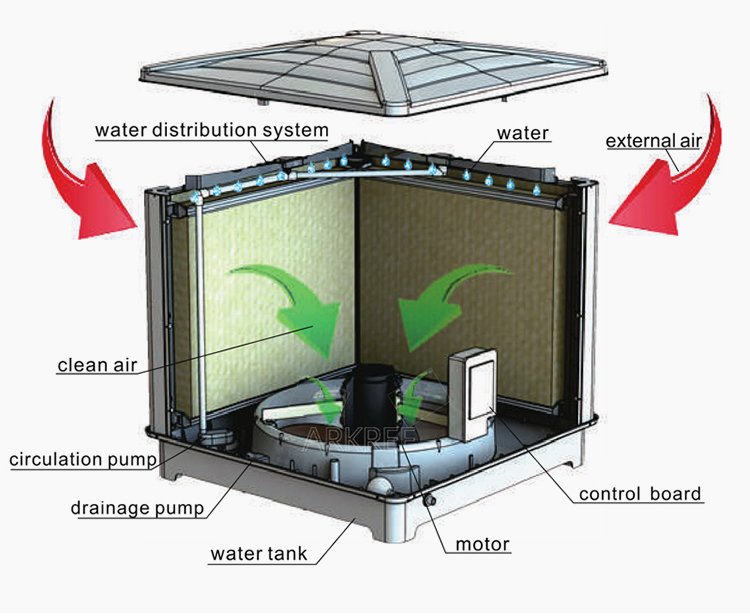

Cooling Principle
The core cooling component of the evaporative cooler is the wet curtain. The fan blows air into the room, and the outdoor air flows through the wet curtain soaked in water. After the air fully contacts the water, it absorbs the heat in the air, so as to achieve the purpose of cooling, ventilation, dust removal and freshness. It is especially suitable for high temperature and crowd-intensive production workplace.
