S3 VFD Condensing Unit
Model:S3 VFD Condensing Unit
Refrigerant:R407C/R134A/R507/R449A/R404A
Power Supply:1x220V 50hz/60hz
Suction Tube:16mm
Exhaust Pipe:10mm
Condenser Model:F-42
Liquid Reservoir：SCYQ-5V
Filter Drier:DCL163
Sight Glass:SGN10S
Evaporation Temperature Use Range:-40℃~-10℃
Maximum Ambient Temperature:35℃
Dimensions (LWH):110cmx41cmx94cm
Compressor:HIGHLY Rotor inverter compressor
Product Parameter
| Model | S3 | S6 | S8 |
| Refrigerant | R407C/R134A/R507/R449A/R404 | ||
| Power supply | 1x220V 50hz/60hz | 1x220V 50hz/60hz | 3x380v-50H |
| Suction tube | 16mm | 16mm | 22cm |
| Exhaust pipe | 10mm | 10mm | 16mm |
| Condenser model | F-42 | F-60 | F-92 |
| Liquid Reservoir | SCYQ-5V | SCYQ-7V | SCYQ-1OV |
| Filter drier | DCL 163 | DCL 163 | DCL 165 |
| Sight glass | SGN 10S | SGN 10S | SGN 16S |
| Evaporation temperature range | -40℃~-10℃ | ||
| Maximum ambient temperature | 35℃ | ||

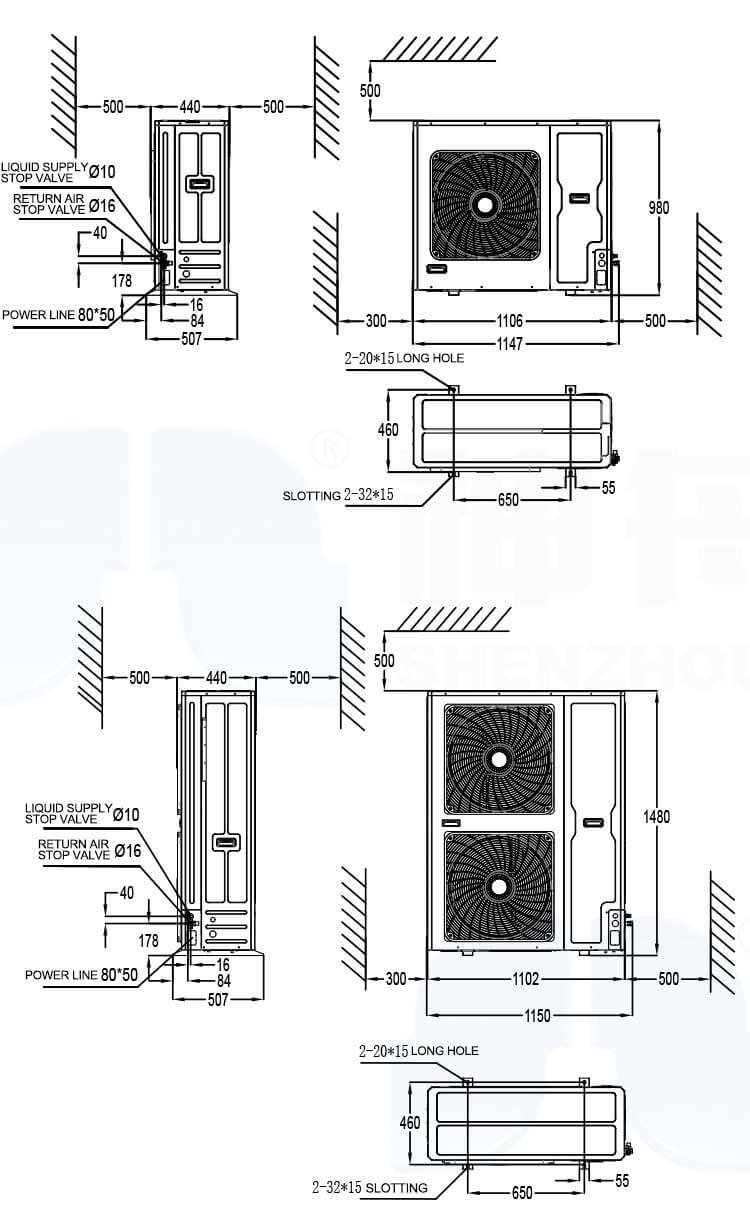

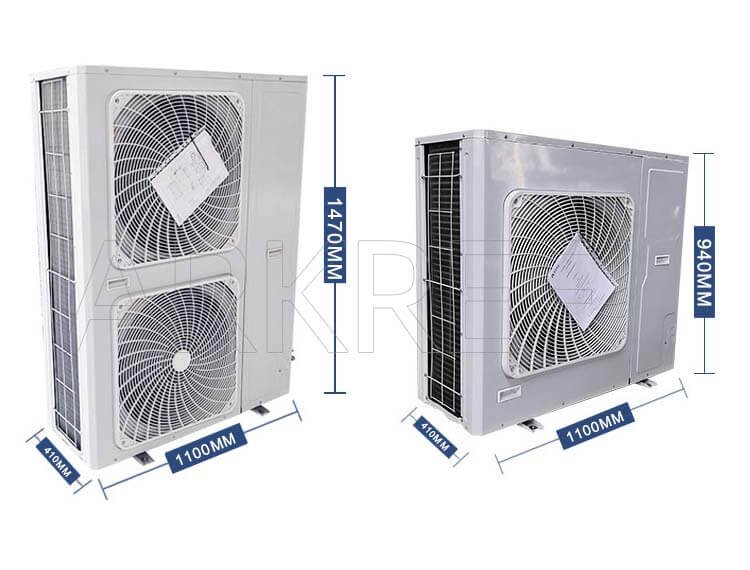

| Dimensions(mm) | 1100*410*940 | 1100*410*1470 | 1100*410*1470 |
| Compressor | HIGHLY Rotor inverter compressor | ||
6 Reasons To Choose Us

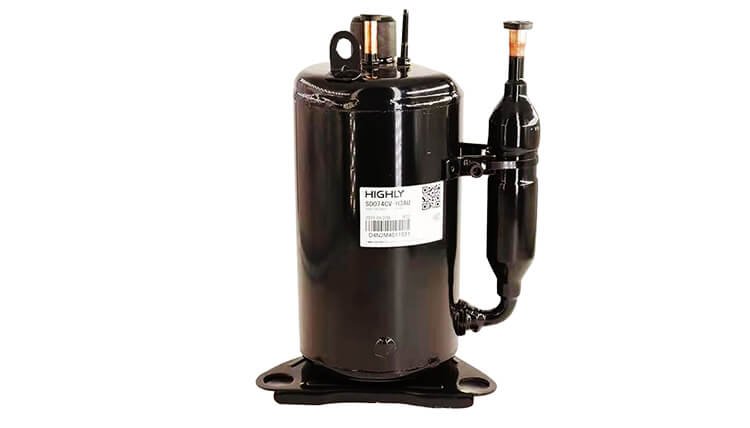

Variable frequency rotor compressor
Using advanced DC frequency conversion technology. It can meet the operation of 220v, 15hz-120hz (900-7200) rpm, and realize stepless energy adjustment according to the demand of automatic end load, which is energy-saving and high-efficiency.
Ultra-wide ambient temperature adaptation
Using variable temperature technology, the same unit is suitable for different working conditions of medium temperature and low temperature, and meets the wide temperature range of evaporation temperature -40℃~+10℃ and external environment -15℃~+45℃.

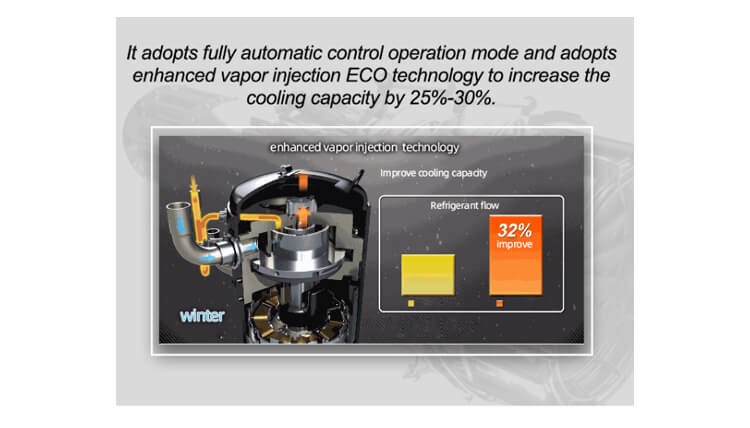

Enhanced vapor injection technology
It adopts fully automatic control operation mode and adopts enhanced vapor injection ECO technology to increase the cooling capacity by 25%-30%.

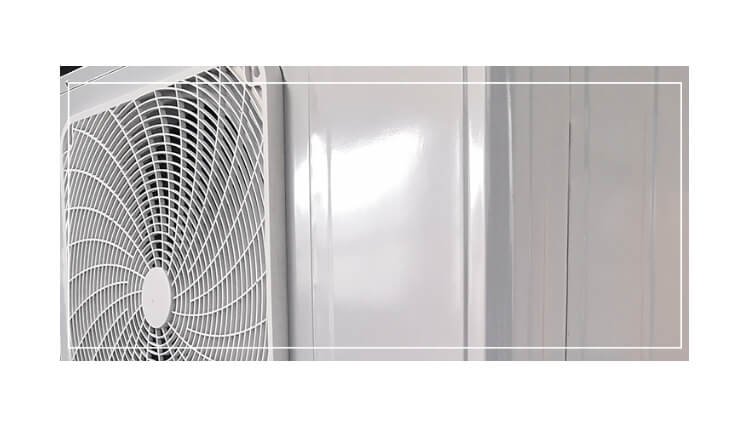

Corrosion resistant and long service life
The shell is made of galvanized steel plate, powder electrostatic spraying technology, corrosion resistance, long service life

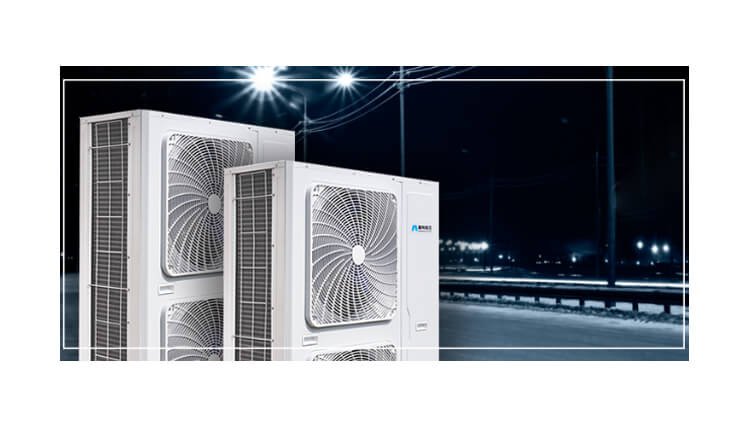

Noiseless
Using high-efficiency night noise reduction technology, the noise can be controlled at 55 decibels.

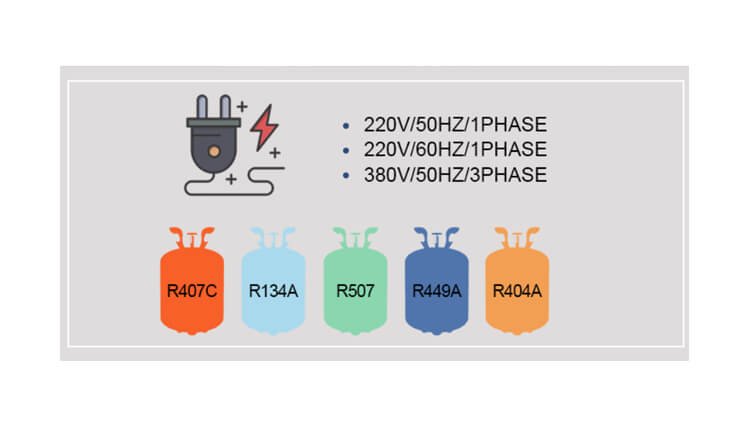

More power supply & refrigerant options
The unit is suitable for different electricity system countries and regions and the installation position is flexible.

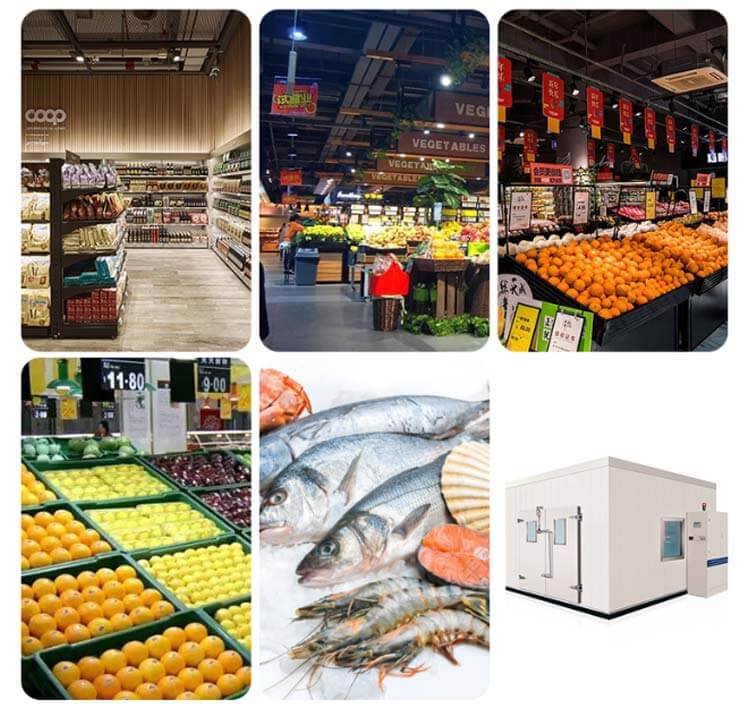

Application
Convenience stores,small cold storage, supporting display cabinets (meat display cabinet/milk display cabinet) CO2 maintenance units.

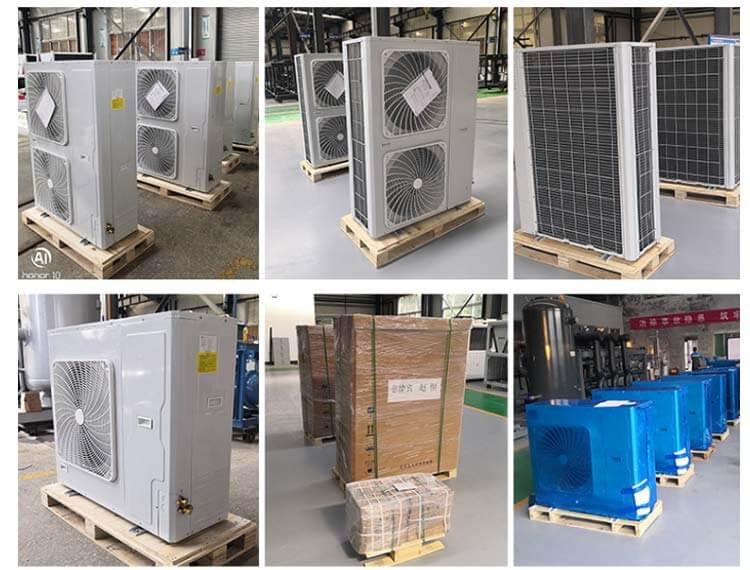

Inventory And Delivery
