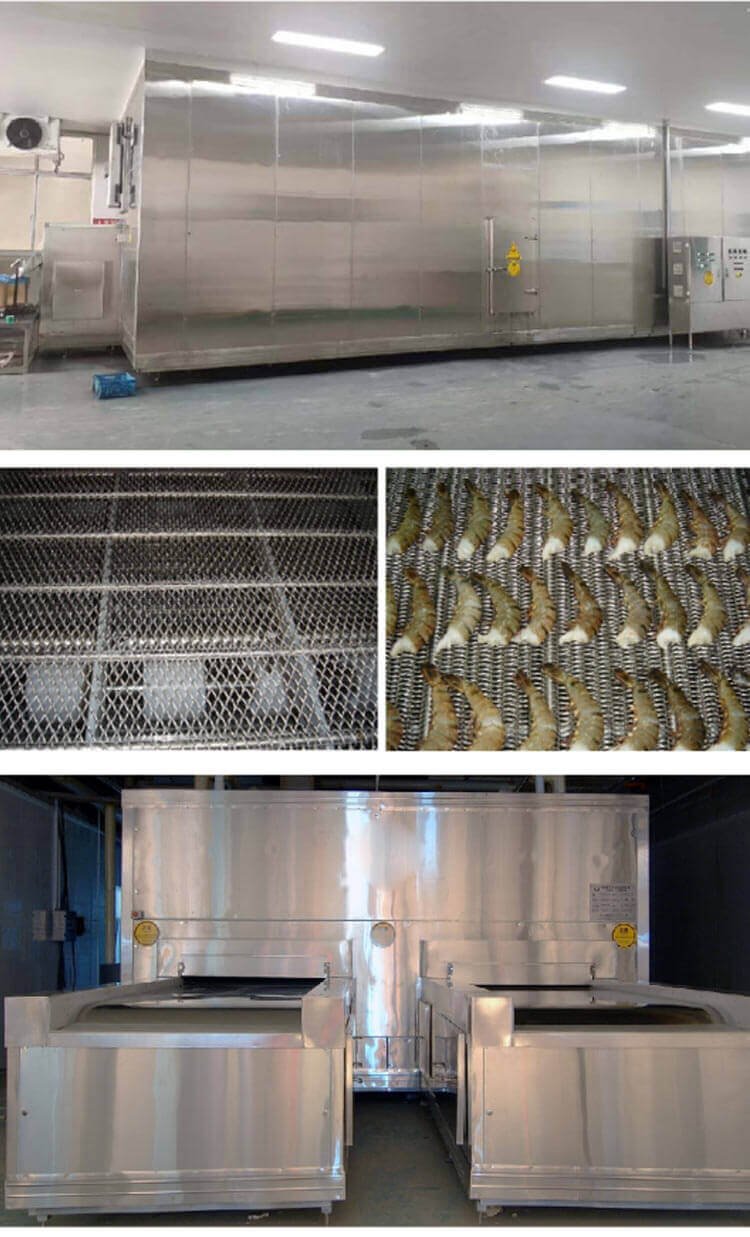

Tunnel Freezer
●Tunnel freezer is a high-efficiency quick-freezing device with a simple structure and wide application. Different conveyor belts, can be divided into tunnel net belt quick freezing machines and tunnel plate fast freezing machines.
●Mesh belt quick-freezing machine is mainly suitable for quick-frozen processing of seafood, poultry, vegetables, fruits, pasta, dairy products, and other foods. The amount of freezing can be from 150kg/h to 2000kg/h.
Technical Parameter
| Model | Freezing capacity | Freezing time(min) | Installed power | Cooling capacity | Size | Transmission bandwidth |
| SZ-1TF150 | 150 | 10-100 adjustable | 3.75kw | 34kw | 76*25*25cm | 1.8m |
| SZ-1TF300 | 300 | 9.55kw | 65kw | 115*25*25cm | 1.8m | |
| SZ-1TF500 | 500 | 19.8kw | 99kw | 166*25*25cm | 1.8m | |
| SZ-2TF500 | 500 | 20.2kw | 99kw | 92*39*29cm | 2.5 | |
| SZ-2TF1000 | 1000 | 28.6kw | 175kw | 180*42*28cm | 3m | |
| SZ-2TF1500 | 1500 | 42.6kw | 256kw | 240*42*28cm | 3m | |
| SZ-2TF2000 | 2000 | 55.8kw | 326kw | 296*42*28cm | 3m |
Customization Process
Need to provide the following information
1.Types of frozen products
2.Quantity of quick-frozen products
3.Freezing time
4.The temperature of the food before quick freezing?
5.The core temperature of the goods after quick freezing?
The continuous quick-freezing mode of tunnel freezer is suitable for large-volume processing and productionin factory assembly lines. It has strong quick-freezing capacity, simple operation and high degree of automation.
Details

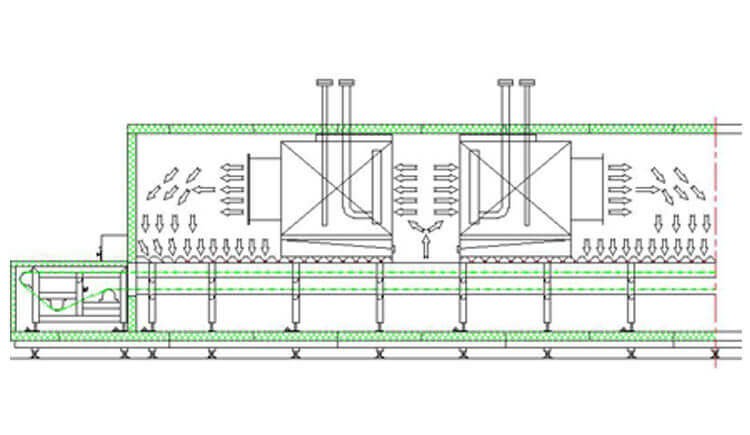

1. Perfect air distribution system
Reasonable air distribution, low-noise and high-efficiency fans ensure the rapid freezing of frozen materials.

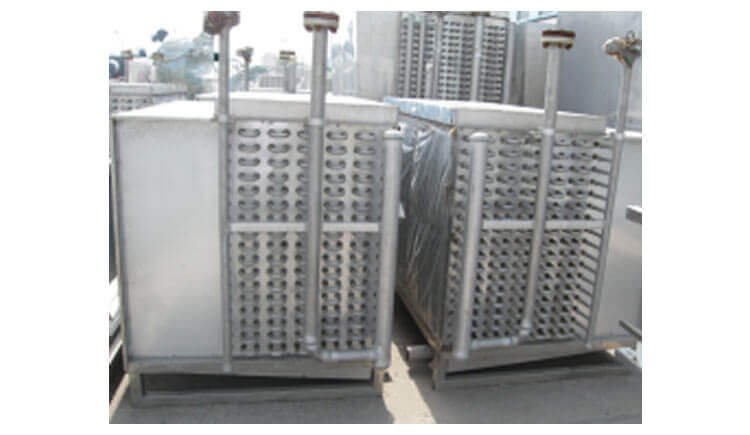

2.Evaporator
Large size fins, Imported special equipment for expanded connection, tight contact,small heat resistance,high heat exchange efficiency.

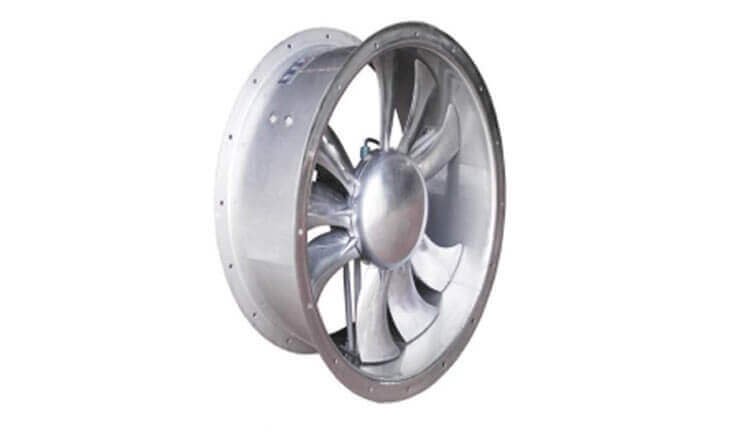

3.Axial Fan
Reasonable air current organization and the high-efficiency axial flow fan with low noise ensure freezing of materials.

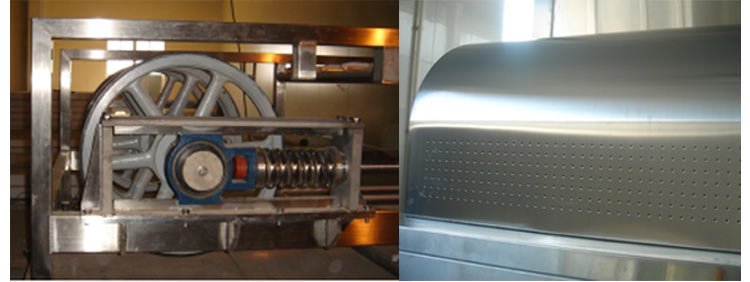

4.Stable and reliable transmission system
A reduction gear is installed and can realize stepless frequency conversion and speed control;with the reduction gear, the speed of conveyor belts can be flexibly adjusted to meet the requirement of different products.

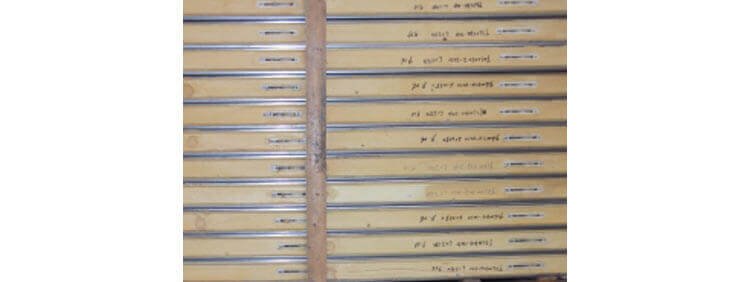

5.Good insulation performance
The library board adopts double-sided stainless steel structure, which has good heat preservation.

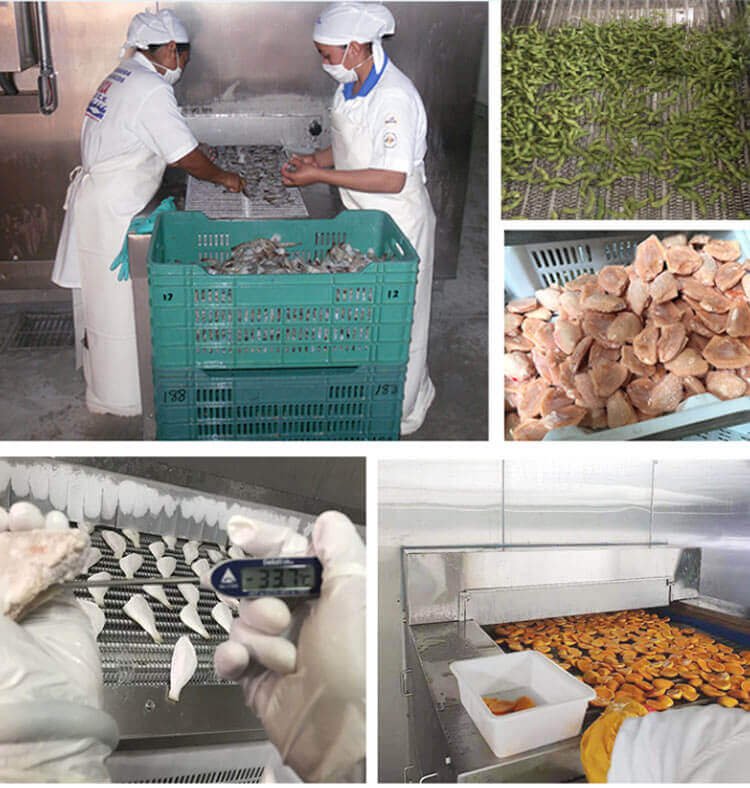

Successful Cases
