Whether it is in the pharmaceutical, chemical, food, metallurgical, or ice rink cold sources, medium and low temperature chillers are required. Shenzhou can provide you with the most ideal industrial medium and low temperature cold water solutions. We try to meeting your needs for energy efficiency and reliability.

Application

Product Parameter

Product name: Chiller

Compressor : hanbell/bitzer (optional)

Product Category:

1.Double Stage series

Inlet water temperature :-50°C~-35°C; outlet water temperature: -55°C~-40°C

2.Low temperature series

Water inlet temperature : -35°C~-10°C; outlet water temperature: -40°C~-15°C

3.High temperature series

Inlet water temperature :-15°C~12°C; outlet water temperature: -20℃~7°C

Details

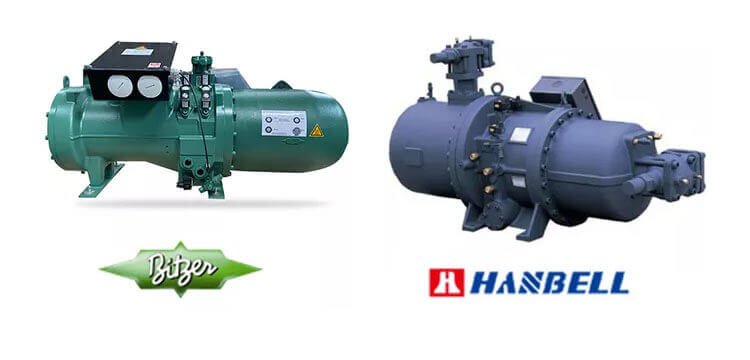

1.Semi-hermetic Compressors

• Adopted world famous branded semi-hermetic compressors for long term reliable and efficient running;

• Compressor runs with no stage limits to realize stageless continuous adjustment of cooling capacity in between 25%-100% power loaded and maintaining stable outputs;

• Option: HANBELL, BITZER

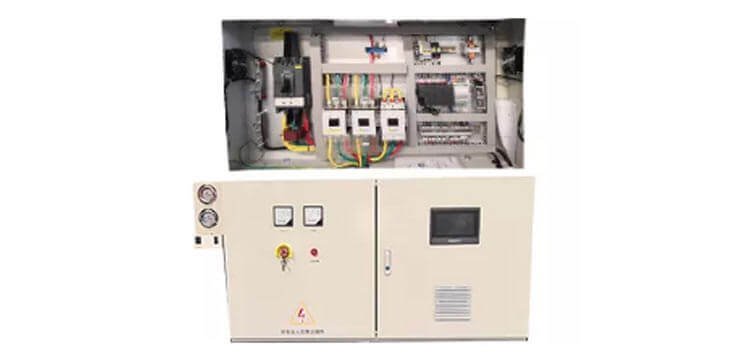

2.Automation Control System

The automation control adopts the HMI+PLC+molded case circuit breaker+AC contactor method, which can be carried out according to the needs of users.

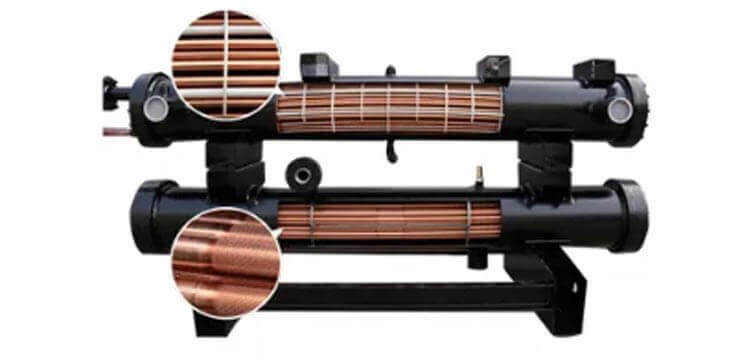

3.Shell and Tube Evaporator & Condenser

Shell and tube condenser adopts highprecision external treaded copper design and shell and tube type evaporator adopts inner treaded copper design

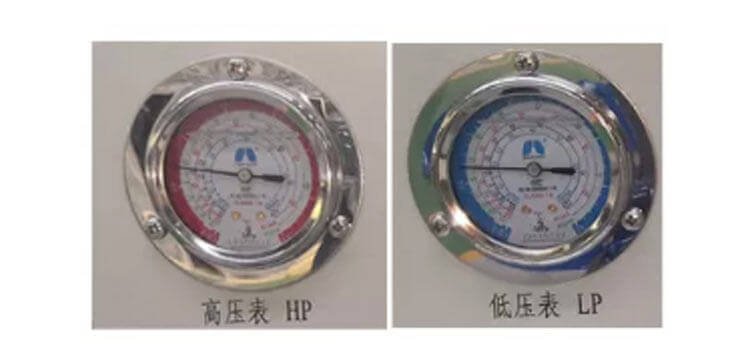

4.Pressure Guage

Sucessful Case

Project name:Cooling essential oil

Country: Rwanda, Africa

Electric system: 3*380V-50Hz

Refrigerant: R404a (inside the unit); glycol (inside the evaporator)

Ambient temperature: 20°C-25°C

Condensing unit: dual-system low-temperature bitzer compressor screw chiller, the unit contains a watercooled condenser, the heat exchange is 226KW.

Material: carbon steel, copper pipe.

Evaporator: material, carbon steel, copper tube, the heat exchange is 320KW.PLC control
